Neurophysiology

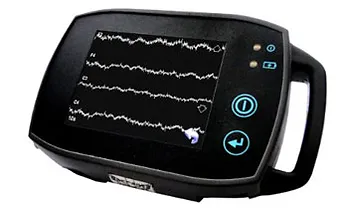

Somno HD EEG 32
One-third smaller than the SOMNOscreen, the new SOMNO HD provides excellent signal quality with a resolution of up to 4 kHz sampling rate per channel with up to 70 channels & 20 hours of recording duration, reduced number of cables thanks to built-in sensors for improved patient comfort.
​
The high-resolution touch screen allows easy and intuitive operation. In addition, signal and impedance monitoring can be carried out directly on the display at the bedside.
Intelligent Connect
The new Intelligent Connect technology simplifies handling in the sleep laboratory by automatically self-detecting the type of sensor connected.
Intelligent Connect also allows arbitrary slots for sensors making it simple to change or add sensors during recordings.
Measurements can be started directly on the device - simply connect the desired sensors and start measuring.
Integrated sensors
To reduce the number of cables to the patient, the RIP sensor for Abdominal Effort and the Pressure Sensor are intergrated into the base unit. An innovative lateral sliding connection keeps the RIP Effort Belt securely on the device.
To prevent accidental disconnection of the sensors during the night, the sensor connectors are reversed so that the sensor cables are tucked neatly behind the unit.
Excellent signal quality
Sampling rate: up to 4 kHz / channel
EXG channels with 24 bit resolution
Low Noise Technology for noise reduction
Continuous impedance control during measurement
Docking station for easy handling
The SOMNO HD is charged via the docking station, firmware updates are also uploaded this way ensuring that your device is always up to date.
The SOMNO HD continues to use SOMNOmedics Bluetooth telemetric data transfer in real time to the PC or Tablet. Additionally, measurement data is saved to internal memory and can be transferred after the measurement is finished via the docking station, preventing any potential loss of data.
Somno HD Eco EEG 32
The SOMNO HD ECO™ joins the HD generation of PSG with 55 channels which can be upgraded to 70 channels. It offers the maximum flexibility in diagnostics.
With intelligent connect, the new montage free sensor recognition, makes all of this easier than ever before.Thanks to the built-in data transmitter, the SOMNO HD ECO™ plus always works wirelessly – allowing for remote signal check – allowing peace of mind whilst doing ambulatory/home sleep tests.
​
Adding video to this powerful device gives you new opportunities to offer the future of HST. The new SOMNO HD ECO™ offers excellent signal quality of up to 4 kHz sampling rate per channel. Combining all the best features from the renowned SOMNOscreen Plus and the most innovative technologies from the SOMNO HD to create one of the simplest, powerful and robust PSGs in the world.
Cuffless Continuous Blood Pressure Measurement.
​
Remote Signal CheckTransfers the measured data, as a screen shot, to your tablet, PC or smart phone for instant signal check. Transfer times and periods can be programmed individually.
Somnoscreen EEG 32
The SOMNOscreen plus EEG 32 is a portable long-term EEG-system. With a total of 58 channels and 32 hours of recording duration it provides a full 32 channel long-term EEG, polygraphy and polysomnography. With wireless BlueTooth data transfer, the SOMNOscreen EEG32 provides full mobility and comfort to the patient. Additionally, the SOMNOscreen plus EEG 32 can be upgraded for other purposes.
-
Ambulatory long-term EEG
-
Neurological diagnostics
-
Epilepsy Monitoring
-
Intensive Care
-
Polysomnography
​
The SOMNOscreen EEG 32 has built-in Bluetooth wireless technology giving your patient the freedom to move, the digital video camera has a built-in infra-red light source, microphone and speaker for two-way communication, it also has a Bluetooth data receiver to stream the live video and RAW physiological data back to the monitoring PC.
​
The data is always stored on a robust high-speed compact flash card (with up to 2 GB capacity for 100 hours PSG) for recording regardless of the wireless option giving you peace of mind that your data will always be recorded.
Somnotouch PSG
The SOMNOtouch PSG is the smallest fully AASM compliant Polysomnography device on the market today. In addition our Home Sleep Camera is a innovative solution for synchronous video in an ambulatory setting.
-
10 Channel Headbox with 6 EEG/EOG, Ground, Reference, Continuous Impedance, 1 EMG
-
Combined sensor for effort, 1 channel ECG, 2 EMG for PLM
-
Pressure (Flow & Snore)
-
Effort (Thorax / Abdomen)
-
SpO2, Pulse rate
-
Body position
-
Movement (Sleep / Wake Determination)
-
CPAP/BiPAP – Pressure
-
Up to 16 channels can be connected via the two open auxiliary connectors, e.g. PLM, ECG, EEG, EOG, EMG
Even though it’s hardly larger than a credit card, real-time data is displayed on the high-resolution touch screen. In addition, the measurement data can also be transferred to tablet and smartphone for a signal check. Extremely light weight, only 64g including the battery, yet very powerful. Integrated sensors and the built-in Li-Ion battery keep the running costs per measurement low.
The headbox for ambulatory sleep staging records 4 EEG, 2 EOG and 1 EMG. In addition, combination sensors can be used to record PLM and ECG in order to complete the signals required for polysomnography.
A Video camera is also available to complete the picture, this is known as our Home Sleep Camera, no wires, no laptops, no fuss, simply initialise together with the SOMNOotuch PSG and send home with the patient.
The Mobile camera includes:
-
Tripod, case
-
Power supply
-
Built in Infrared-illumination
-
Video resolution of 800 x 600 pixel, in the H.264 format
-
Audio
-
Record up to 90 hours of video.
-
It’s small in size (137 x 124 x 71 mm) and light at only 460 g.
-
The accuracy of the synchronization between recorded data and video is ± 1 second

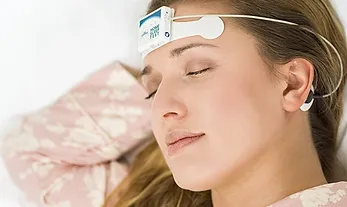

Home Sleep Test
INSOMNIA - The most prevalent and undiagnosed Sleep Disorder
30 % of the adult population suffer from insomnia compared to 3-5 % OSAS.
The Home Sleep Test (HST) device is a cost effective, easy to use home-based sleep screener to determine sleep stages, sleep disturbances and resulting sleep fragmentation by cortical arousals.
​
Thanks to it’s compact design and minimal wiring, the application is very simple. The HST reliably records EEG, EOG, EMG, impedance, ambient light, activity, position and sound for snoring detection.
​
Efficient & affordable insomnia screening
-
Objective determination of sleep stages
-
Recording of EEG/EOG, EMG, continuous impedance, light, activity, position, sound (snoring)
-
Easy application in the patient’s home
-
Detection of cortical arousals and sleep fragmentation
-
Cloud based analysis software, AASM-compliant analysis and report templates (encrypted data transfer)
-
Recording of multiple nights
